T53


Small size, good short-term stability, SMD sstratum 3 TCXO;
Widely applied in Femtocell, Nanocell and precise instruments and meters etc.

Feature list
1. Output

Frequency Range 9.6MHz ~ 50MHz

Common Frequencies
10.00MHz10.00MHz12.80MHz13.00MHz15.00MHz16.32MHz16.384MHz
18.432MHz19.20MHz19.44MHz20.00MHz25.00MHz30.72MHz32.768MHz
38.88MHz40.00MHzCustomization



Waveform

WaveformLoadPeak-Peak(V)
Clipped sine wave10KΩ//10pF0.8min
Square Wave15pFHCMOS

2. Frequency Stability (Typical, @10.00MHz)
Temperature Stability(Refer to the table of Stability Selection & Coding Rules)
Short-term stability 5E-10/S(in stable temperature, without EMI/MEC or other interferences, test at 25℃after power-on for10 minutes)
3. Power Supply @25
Operating Voltage 3.3V
4. Current
    Operating current 3mA ~ 10mA
5. Voltage control characteristics
Linearity ≤10%
Slope  Positive
6. Phase Noise(Typical, @10.00MHz)
1KHz      -145dBc/Hz

7. Environment Characteristics
Operable Working Temperature -40℃ ~ +85℃
Storage Temperature   -55℃ ~ +105℃
Vibration
Test Condition:
Amplitude: 0.75mm;acceleration: 10g;10Hz~2000Hz; a cycle per 30min, test for 2 hours in 3 directions (3 directions: X, Y and Z), IEC 68-2-06 Test Fc.
Shock
100g;6ms;half sine wave (3 directions: X, Y and Z), IEC 68-2-27 TestEa/Severity 50A.
Drop Test
To free drop at a height of 100cm to a concrete or steel-made smooth and rigid plane, IEC 68-2-32.
Stability Selection & Coding Rules

Temperature (℃)Temperature StabilityDay-agingYear-agingStability vs. VoltageStability vs. LoadCode
-20 ~ 70±1E-7±2E-8±1E-6±2E-7±2E-7O
-20 ~ 70±2.8E-7±2E-8±1E-6±2E-7±2E-7C
-20 ~ 70±5E-7±2E-8±1E-6±2E-7±2E-7D
-20 ~ 70±1E-6±2E-8±1E-6±2E-7±2E-7E
-30 ~ 75±1E-7±2E-8±1E-6±2E-7±2E-7W
-30 ~ 75±2.8E-7±2E-8±1E-6±2E-7±2E-7J
-30 ~ 75±5E-7±2E-8±1E-6±2E-7±2E-7R
-30 ~ 75±1E-6±2E-8±1E-6±2E-7±2E-7K
-40 ~ 85±1E-7±2E-8±1E-6±2E-7±2E-7Q
-40 ~ 85±2.8E-7±2E-8±1E-6±2E-7±2E-7Y
-40 ~ 85±5E-7±2E-8±1E-6±2E-7±2E-7F
-40 ~ 85±1E-6±2E-8±1E-6±2E-7±2E-7G
-40 ~ 85±2E-6±2E-8±1E-6±2E-7±2E-7H
T53  –  X  X  X  X  –  XX.XX  MHz

                 ①          ②   ③    ④    ⑤              ⑥
Series No.  ②See the table above  ③See Table 1  ④See Table 2 ⑤See Table 3  ⑥Output frequency
Besides the specifications above, this product can be customized according to your requirements.


Table 1

3HCMOS
4Clipped sine wave

Table 2

13.3V

Table 3

Pull-in Range              Central Voltage1.5V
±10.0ppm ~ ±15.0ppm3
±5.0ppm ~ ±10.0ppm6
N/C9

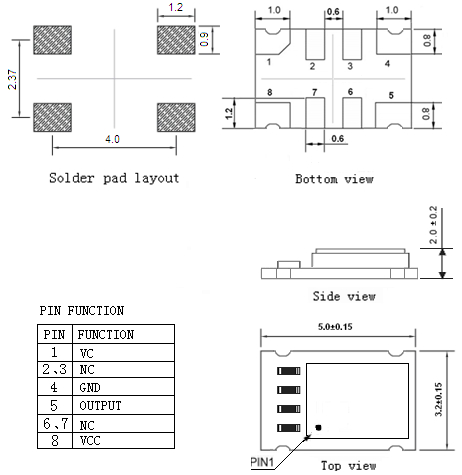

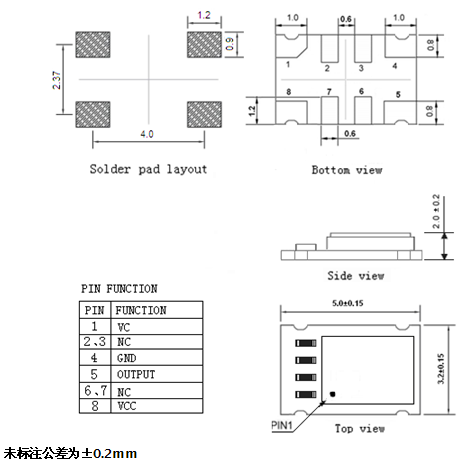

8. Mechanical Structure(mm)
Outlines & Pins Function

*Tolerance ±0.2mm without marking
9. Weight: about 0.05g

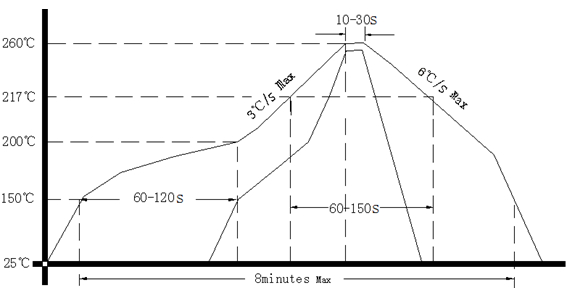

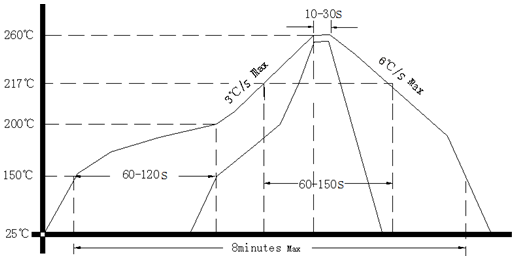

10. Reflow Soldering Curve(RoHS)

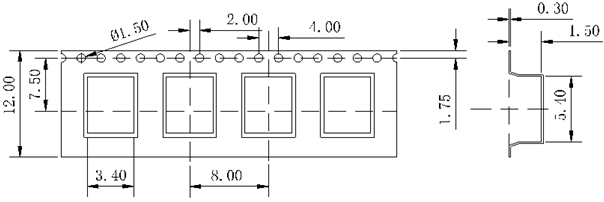

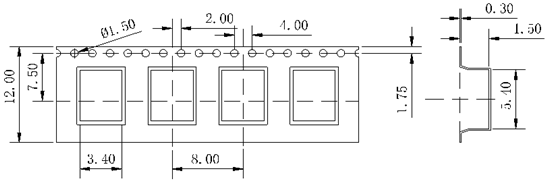

11. Package: Tape & Reel(mm)
