Clock Module
Clock Module
The clock module can achieve the performance of atomic clock based on DAPU's algorithm (over temperature and aging) and DAPU's high performance OCXO. Dapu can provide a variety of the synchronous and holdover clock module, to meet the different demands .
. Supports multiple reference input clocks: GPS, IEEE1588 or other clock sources)
. High holdover performance: 1.5US for 24 hours
. Quick Disciplined
It is used in LTE, LTE-Advanced, 5G base stations, digital video broadcast and general timing and Instrumentation applications.
| Series | Photo | Features | Package(mm) | Stability | Aging/year | Phase noise |
|---|---|---|---|---|---|---|
| CM65 |
 |
Holdover：±1.5us/24h △T=±30℃ | DIP 65.0×65.0×19.0 | ±1E-11~±5E-11 | ±2E-8 | -148dBc/Hz @1KHz |
| CM66 |
 |
Dual-mode, 3.0uS/24h | DIP 60.0×60.0×13.0 | 3.0us/24h，△T=±5℃ | ±2E-8 | -148dBc/Hz @1KHz |

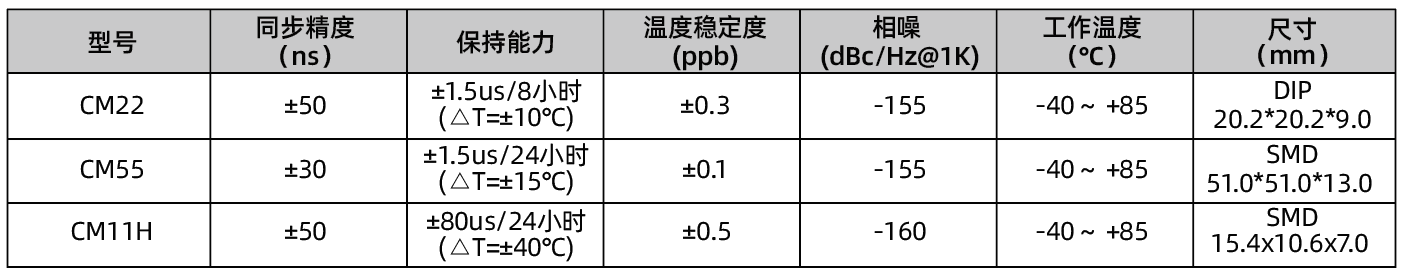

| CM55 |
 |
Small clcok module, 1.5uS/24h | DIP 51.0×51.0×13.0 | ±1E-10~±5E-10 | ±2E-8 | -148dBc/Hz @1KHz |

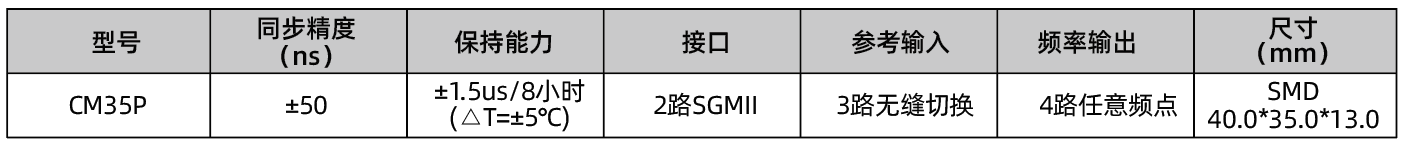

| CM35P |
 |
IEEE1588, 1.5uS/8h | DIP 35.0×40.0×13.0 | 1.5us/8h，△T=±5℃ | ±5E-8 | -148dBc/Hz @1KHz |
| CM22B |
 |
Small clcok module, 1.5uS/8h | DIP 20.0×20.0×13.0 | ~±5E-10 | ±5E-8 | -148dBc/Hz @1KHz |

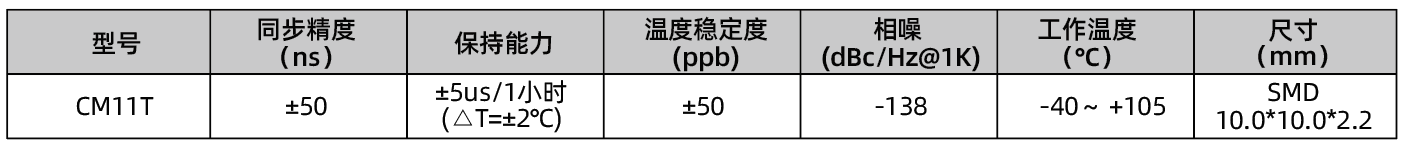

| CM11T |
 |
Small clcok module, low power, holdover of 5us/1h | SMD 10.0×10.0×2.2 | ±5E-8 | -138dBc/Hz @1KHz |
